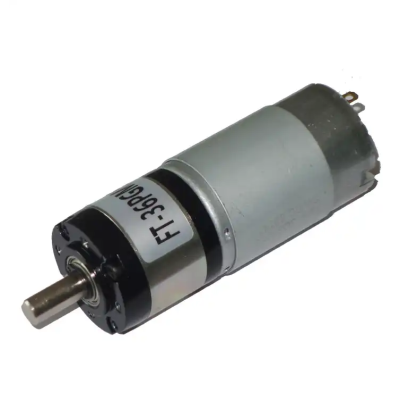

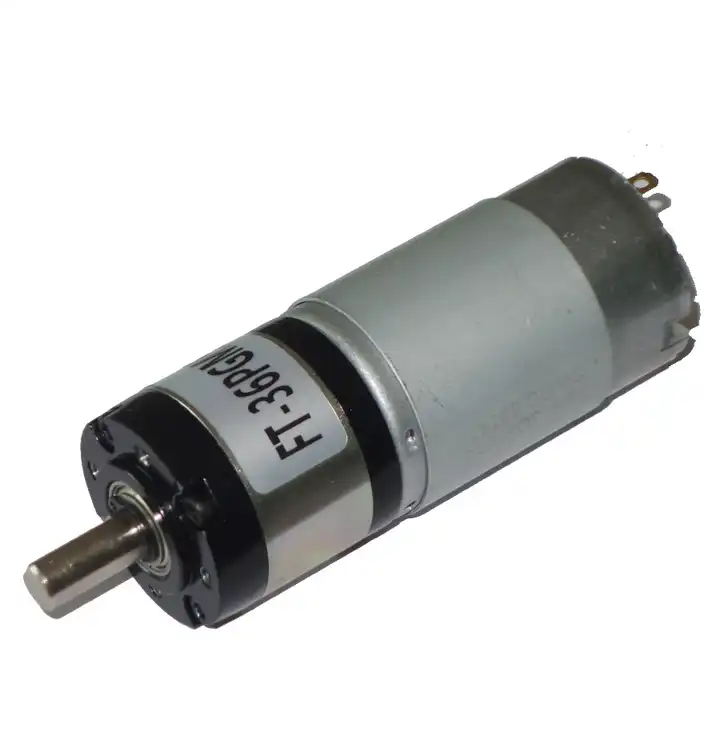

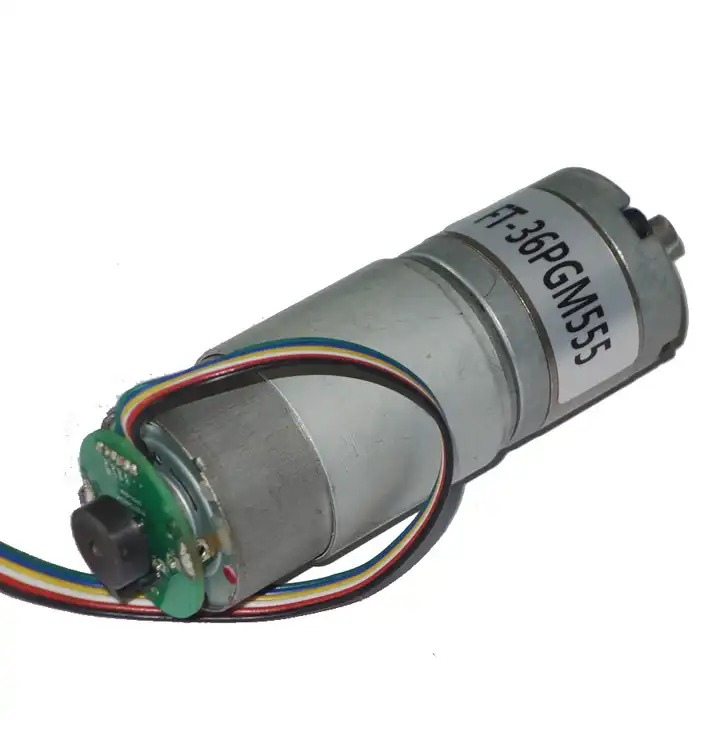

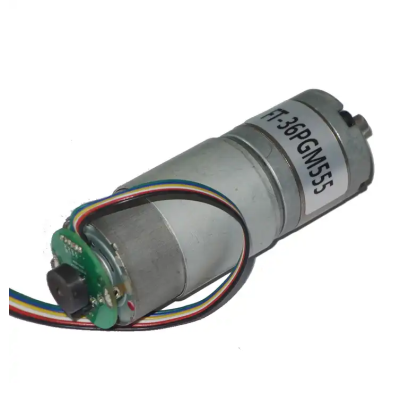

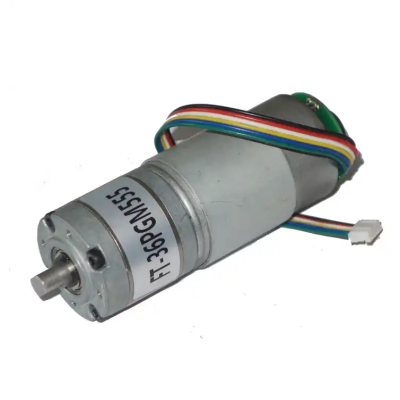

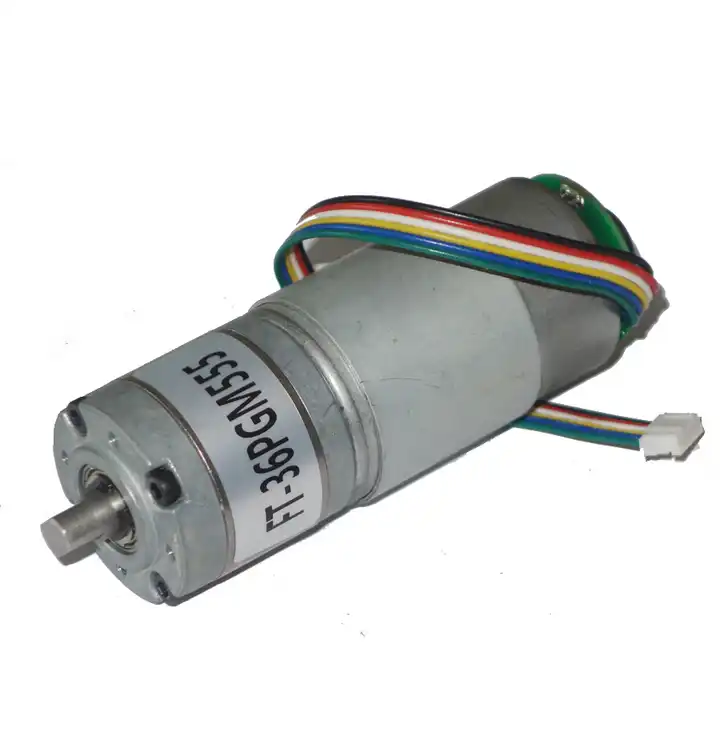

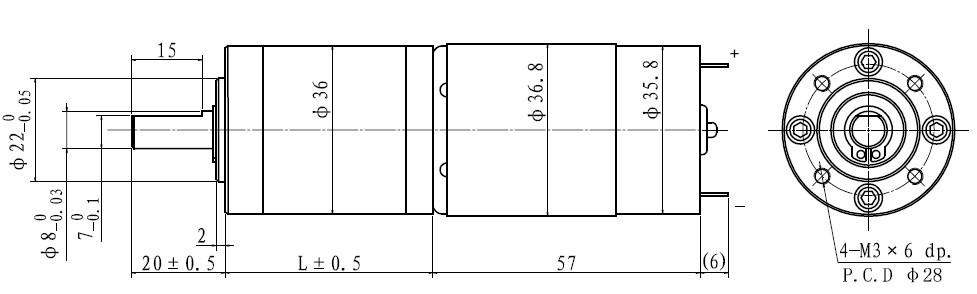

FT-36PGM555-100K 36mm DC Gear Motor FT-36PGM555-100K

 Model number

FT-36PGM555-100K

Rated Torque :

Gear Ration :

1:100

Stall Current :

Rated Voltage :

24

Stall Torque :

138.5 Min

Flee-Load Speed :

85 ± 12%

Stall Allowed or Not :

No

Flee-Load Current :

400 Max

Direction :

CCW

Rated Speed :

70 ± 12%

Noise (L=300mm):

/

Rated Current :

1900 Max
