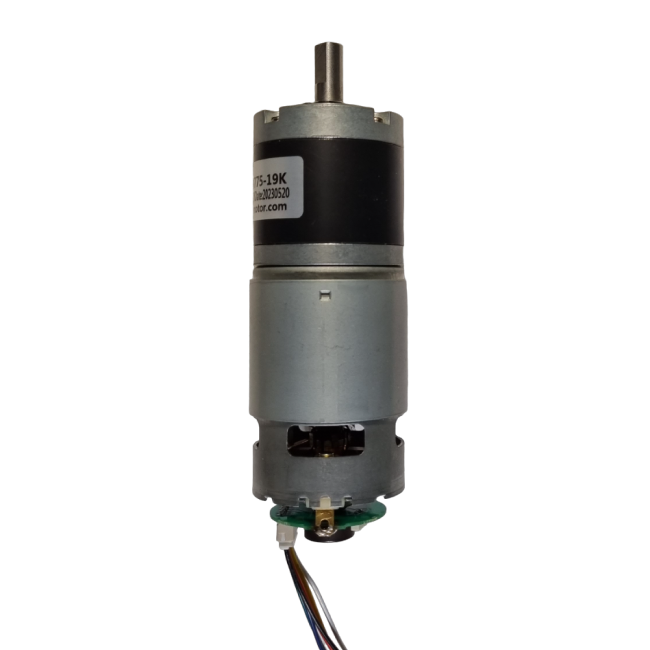

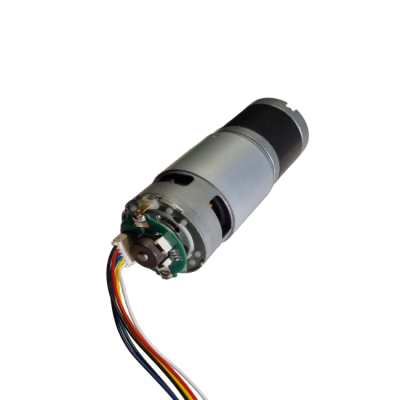

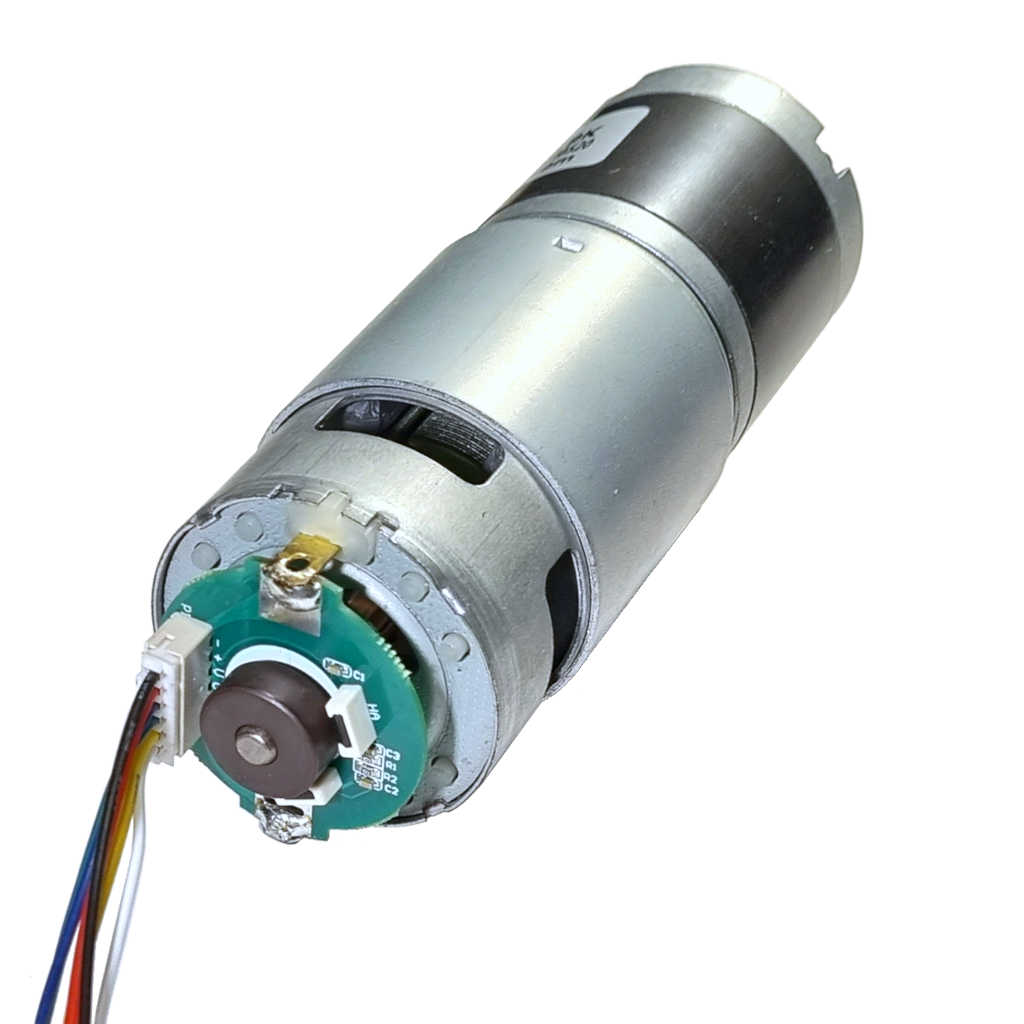

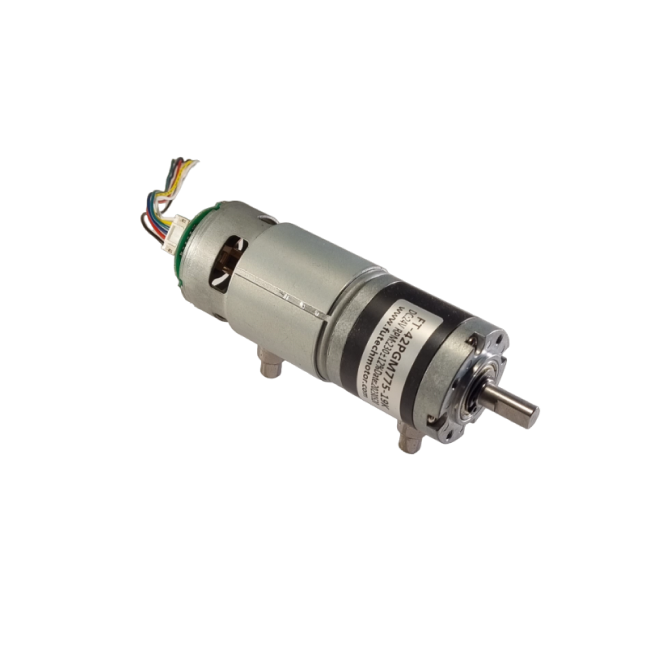

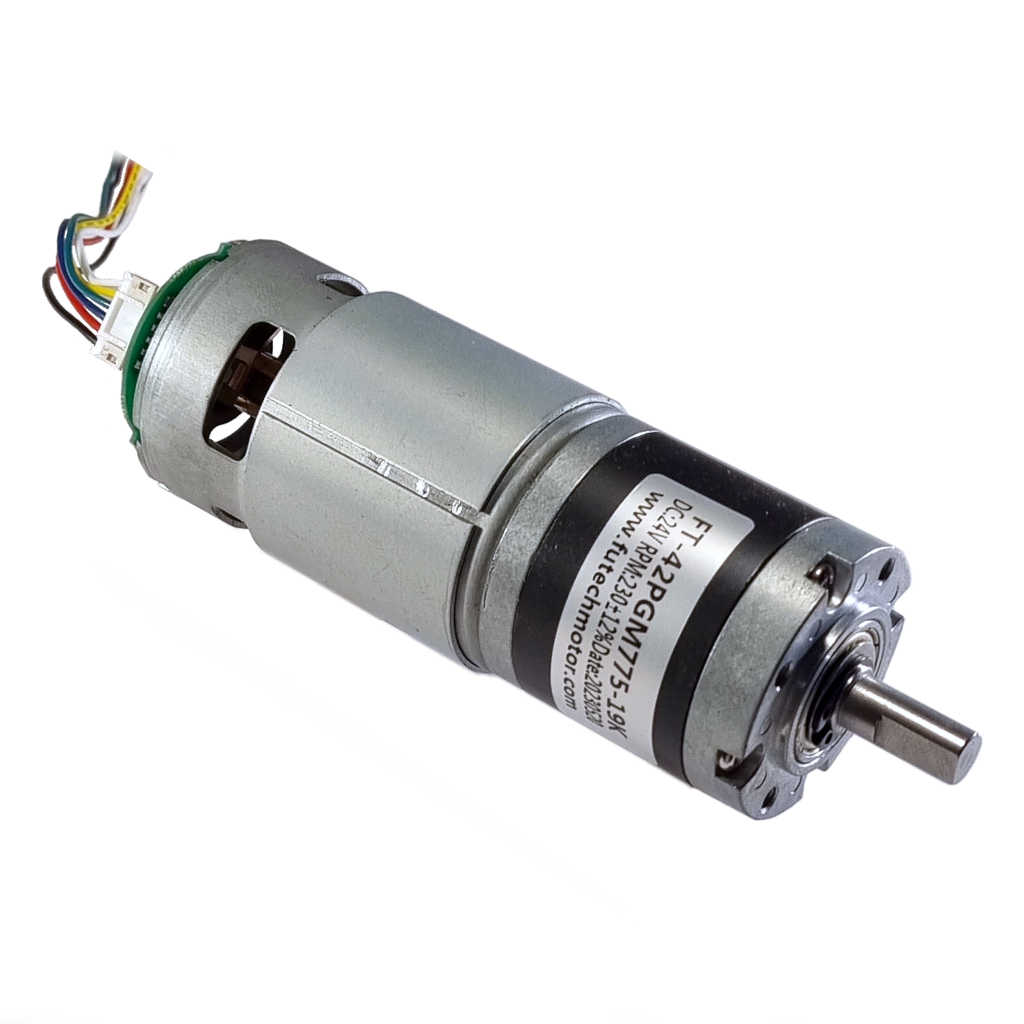

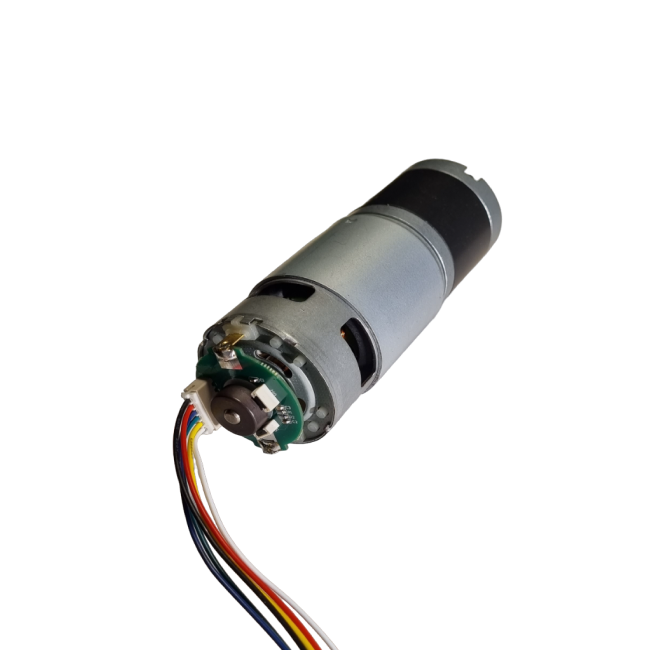

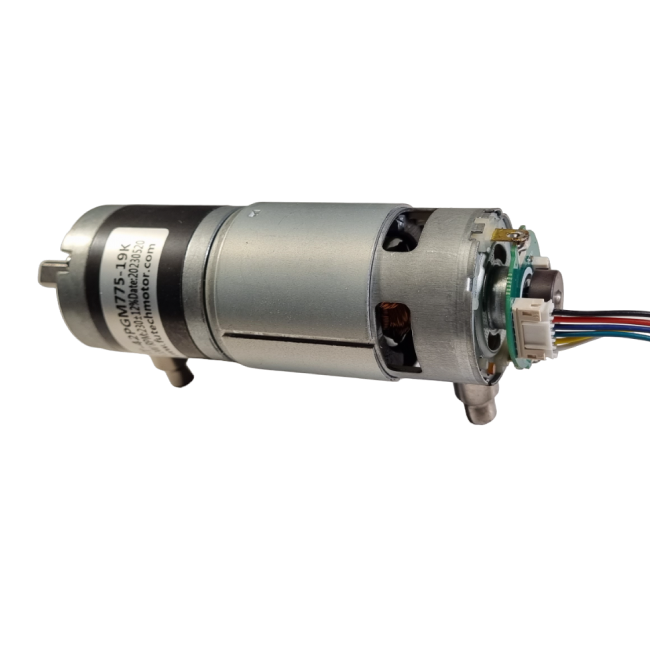

DC 24v variklis su planetariniu reduktoriumi ir 12ppa magnetiniu enkoderiu FT-42PGM775-19K

 Model number

FT-42PGM775-19K

Rated Torque :

Gear Ration :

1:19

Stall Current :

Rated Voltage :

24

Stall Torque :

49 Min

Flee-Load Speed :

230 ± 12%

Stall Allowed or Not :

No

Flee-Load Current :

400 Max

Direction :

CCW

Rated Speed :

190 ± 12%

Noise (L=300mm):

/

Rated Current :

2100 Max
